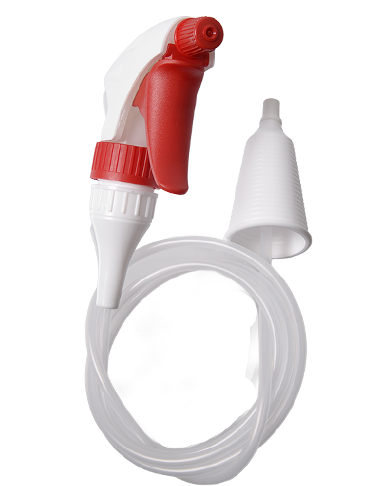

Datasheet SPRAYGUN 1.3 ml, red white
Industrial Maxi New sprayer with a 1.2 M extension tube and adapting cone for all types of spouts.
Foreseen for « ovenabrasive » products, permanent stock.
General Information
- Ordering numbers : SPRAYGUN BS BRO SC VE
- Spraying capacity : 1.3 ml
- Weight : 100.00 gr
- Color : red white
- Tube length : 1200 mm
Neck : Cone SPRAYGUN
Standard packaging : C03 PL
- 100 pcs per box
- Dimensions 60 x 40 x 31 cm
- Gross weight 10.78 Kg

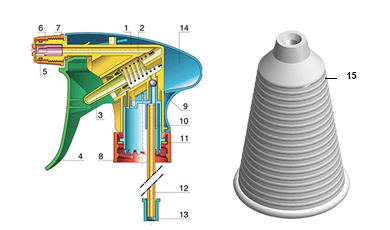

Exploded View
| Pos | description | Material |
| 1 | Body | PP |
| 2 | Spring | st. steel 304 |
| 3 | Valve | PP |
| 4 | Trigger | PP |
| 5 | O-ring | NBR |
| 6 | Valve | POM |
| 7 | Nozzle | PP |
| 8 | Ring | PP |
| 9 | Ball | st. steel 304 |
| 10 | Connection | PP |
| 11 | Seal | PP/EPE |
| 12 | Tube | PE |
| 13 | Filter | PP |
| 14 | Cone | PELD |
